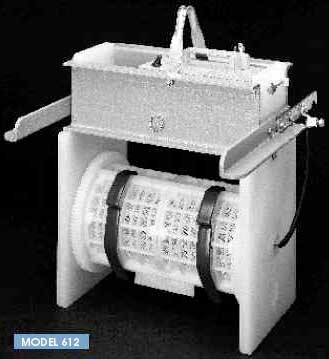

Medium Barrels
sterling05

®
page70102

Medium barrels are designed to handle a wide range of load sizes and feature our exclusive interchangeable motor cartridge. These barrels also feature our convenient clutch which allows rapid positioning of the cylinder when loading or removing parts.

Medium barrels also come with stainless hardware below solution level for most applications, or titanium hardware for strong acid bath applications. Styles include B, C, or C-1 mesh, or square hole cylinders.

When ordering, please specify plastic-tipped rod dangler, ball dangler, or floating rod dangler; motor RPM; and mesh type required.

When ordering, please specify Model number, motor RPM, cylinder style, dangler type, and hardware below solution level. Sterling custom builds cylinders for use with most standard plating barrels.
page70202

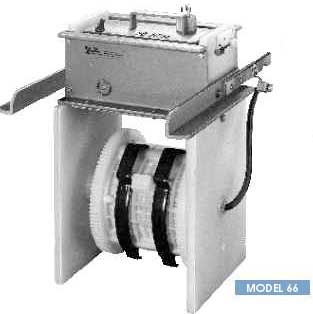

Model

66

69

612

8512

918

1018

1024

Cylinder Size I.D. x L (in.)

6 x 6

6 x 9

6 x 12

9 x 12

9 x 18

10 x 18

10 x 24

Approx. No Load Weight (lbs.)

23

24

25

33

38

45

57

A

13 3/8

13 3/8

13 3/8

157/8

157/8

195/8

195/8

B

11

12

15

15

21

21

27

C

9

9

9

113/8

113/8

115/8

115/8

D Max.

155/8

155/8

155/8

195/8

195/8

195/8

195/8

E Over Clamps

9¼

9¼

9¼

12¼

12¼

143/4

143/4

F* Cathode Rod To Cylinder

41/8

41/8

41/8

41/8

41/8

41/8

41/8

G

8¼

8¼

8¼

8¼

8¼

8¼

8¼

Speed (RPM) ** Motor RPM

28

6.0

6.0

6.0

4.6

4.6

3.6

3.6

57

12.5

12.5

12.5

9.5

9.5

7.5

7.5

94

18.0

18.0

18.0

13.7

13.7

10.8

10.8

Load Size 1/3 Full (cu. in)

56

85

112

190

285

426

570
